Lightplane Linear Recessed
Configure this product in 3 easy steps
Lightplane Linear Recessed
Linear
Product details

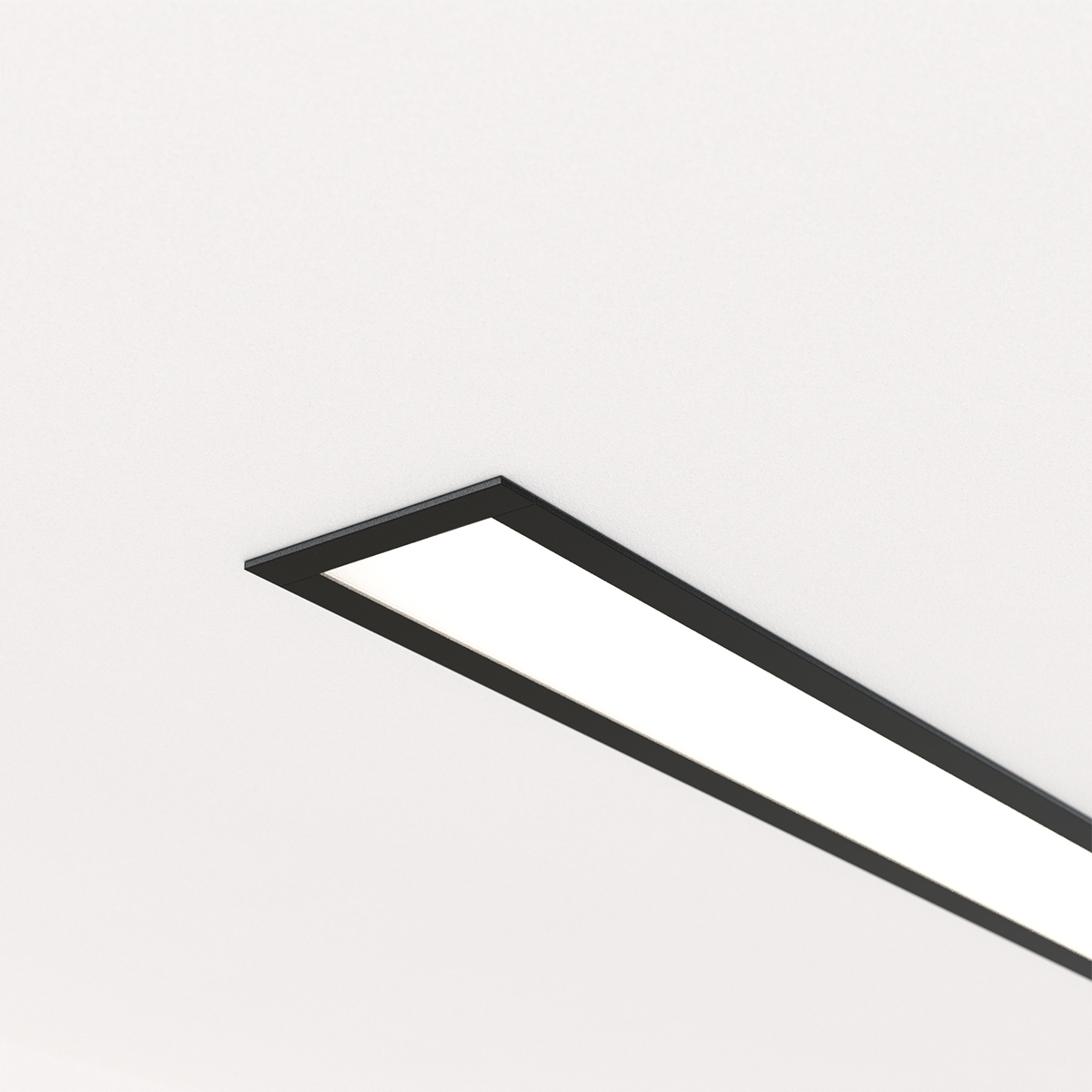

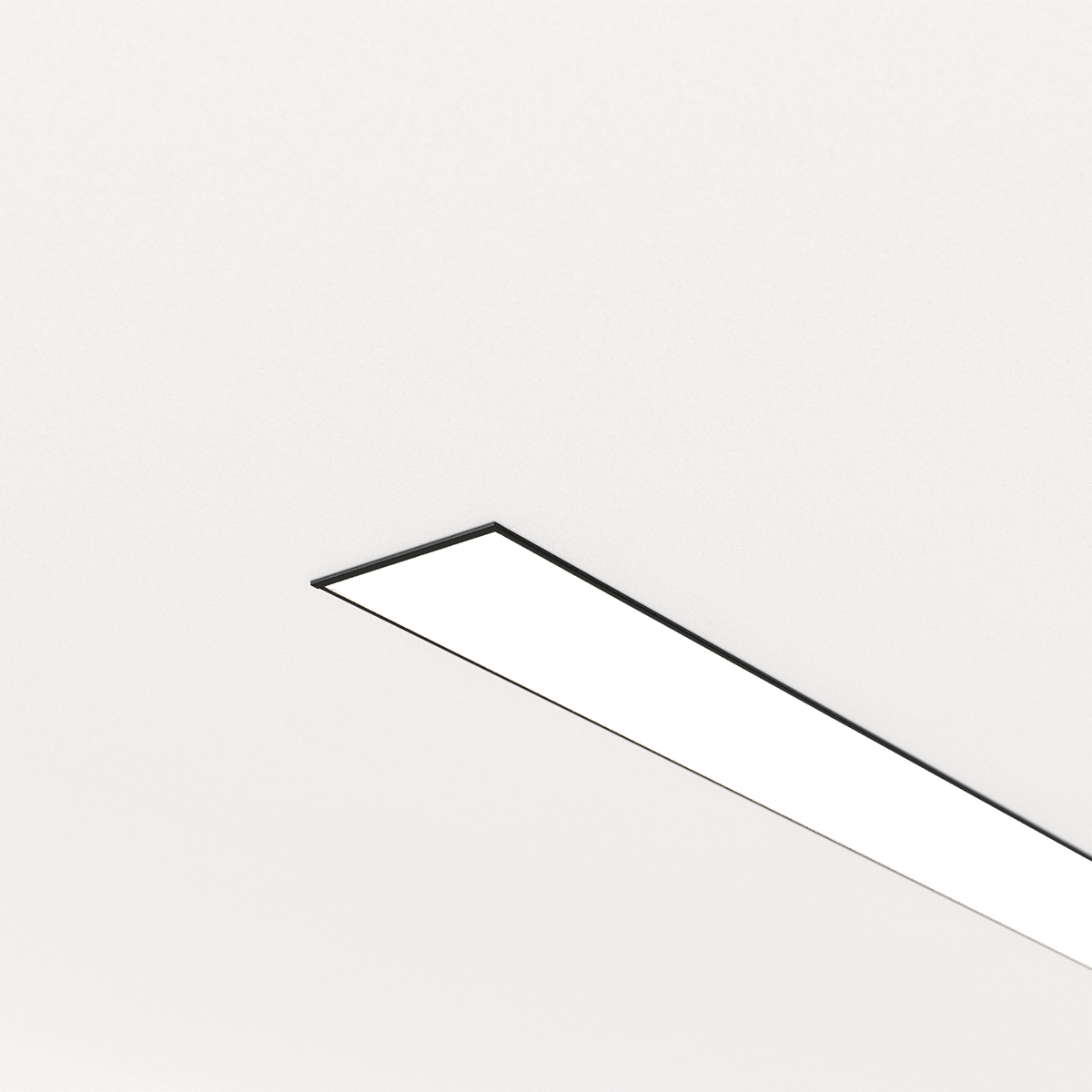

Lightplane Linear Recessed is a low-profile recessed slot light. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.
Key Features
- Fixture Configurations: Individual, continuous run, or configured shape
- Light Distribution: Direct or indirect
- Output: Up to 4000 lumens/meter and 115 lumens/watt
- Control: DALI, 0-10V, 1-10V, DMX, phase control, and wireless options
- Quality: High-quality light with <1% output ripple
- Compliance: WELL compliant, dimmable to 0%
- Lens Options: Prismatic diffuser and softening lens for low UGR (UGR <19)
- Finishes: RAL, special powder coating, plates, or acoustic finishes
- Options: Tunable white and RGBW options available
- Extras: Integral emergency, Casambi, and Power over Ethernet (PoE)
- Sensors: Full range of integrated sensors, including daylight harvesting and DALI/DSI digital dimming
- LED Options: Premium and standard LED options
- Files: All LDT/IES files available through configurator
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry

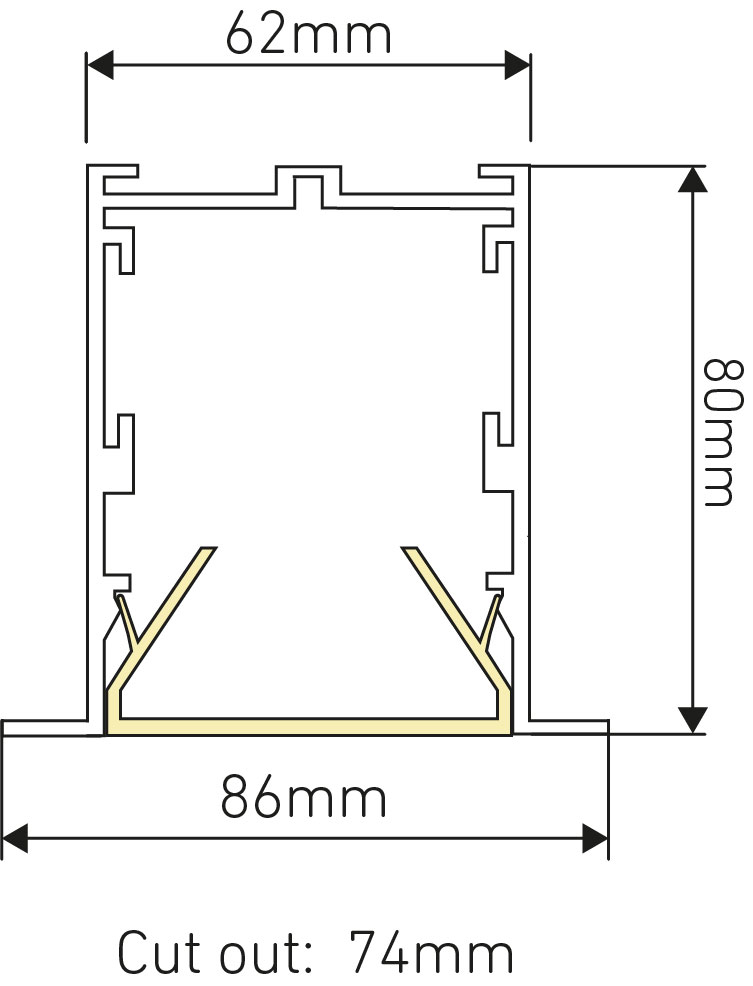

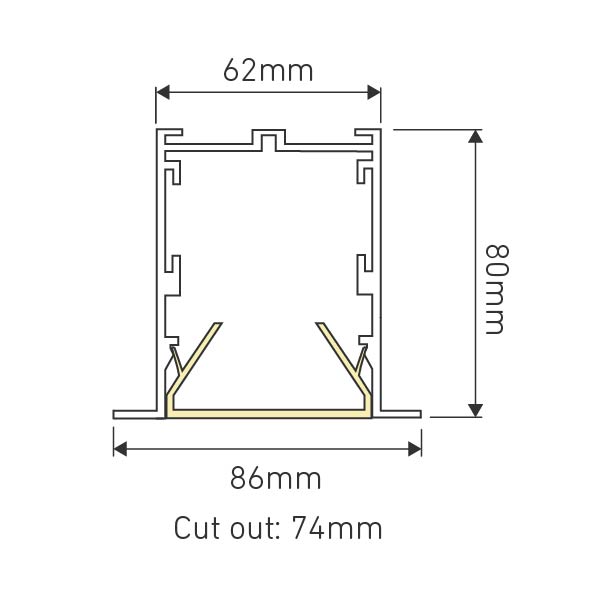

Dimensions

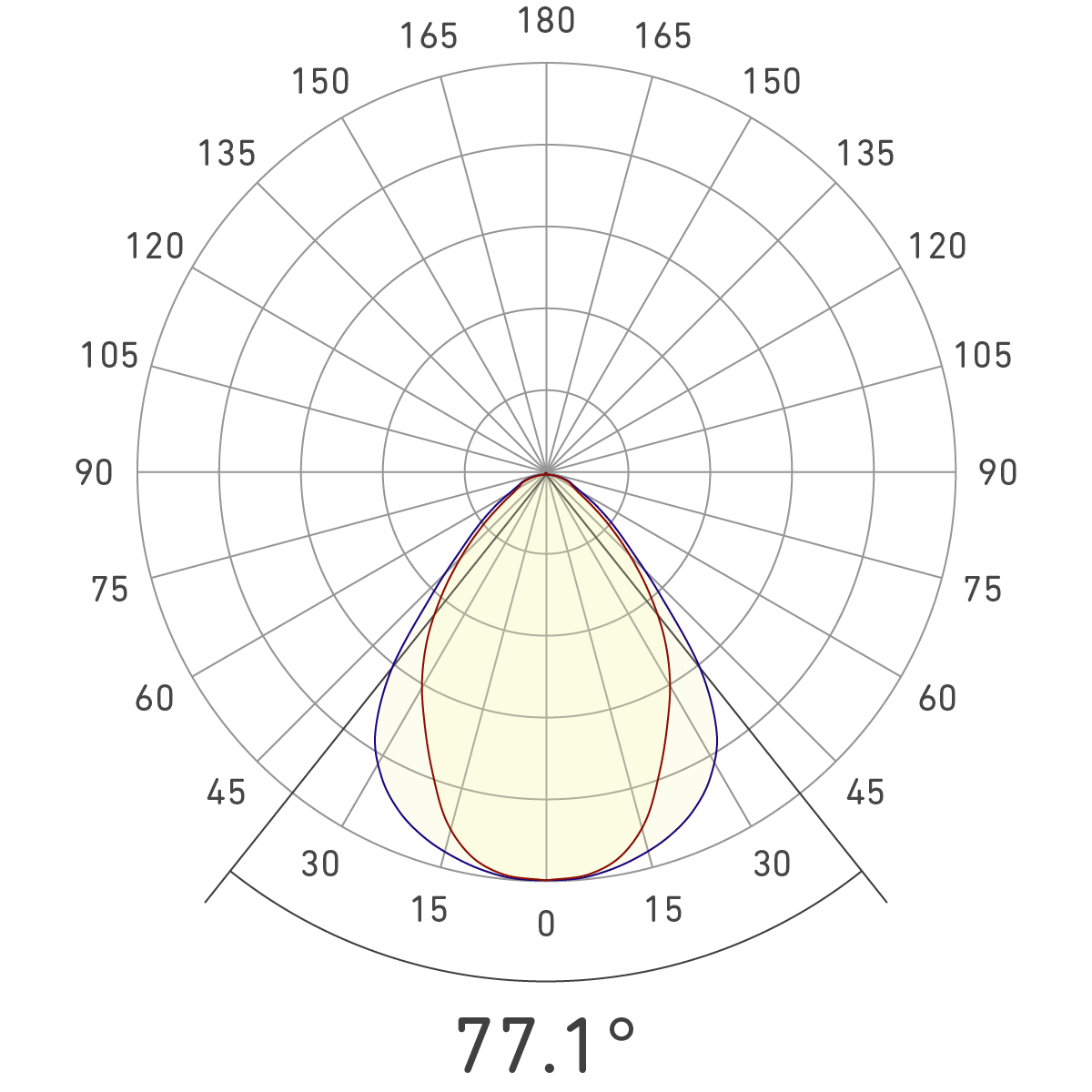

Distribution
