Lightplane 1 Concave
Configure this product in 3 easy steps
Lightplane 1 Concave
Linear
Product details
Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.
- Concave direct channel with recessed lens fitting
- Individual fixture, continuous run or configured shapes
- Direct/ indirect or direct distribution
- Up to 3000 lumens/ meter and 90 lumens/ watt
- Three standard output options
- All LDT/IES files available on through configurator.
- Tunable white and RGBW options
- Integral control gear
- DALI, 0-10V, 1-10V, DMX & phase control available
- Dimming down to 0%
- High quality of light thanks to <1% output ripple current
- Remote sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
- RAL + Special powder coating, plates or acoustic finishes
- Premium and standard LED options
- Extras and add ons include integral emergency, Casambi & Power over Ethernet (PoE).
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry

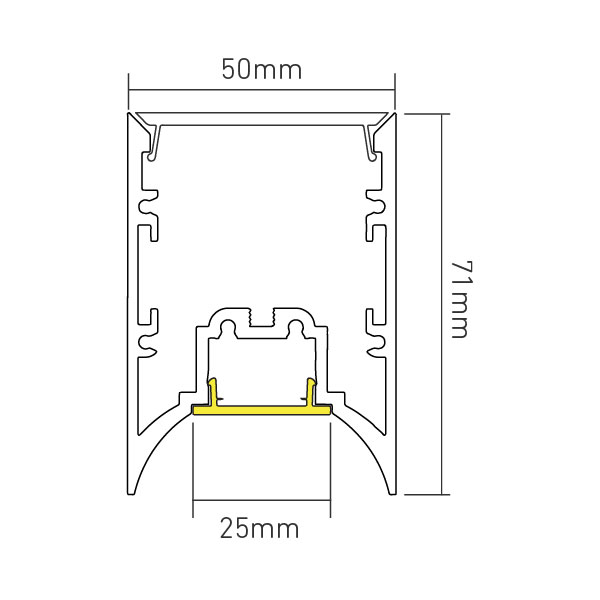

Dimensions

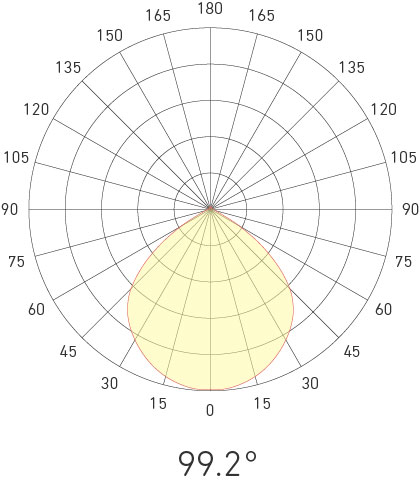

Distribution
