Aquila

Configure this product in 3 easy steps

Product details

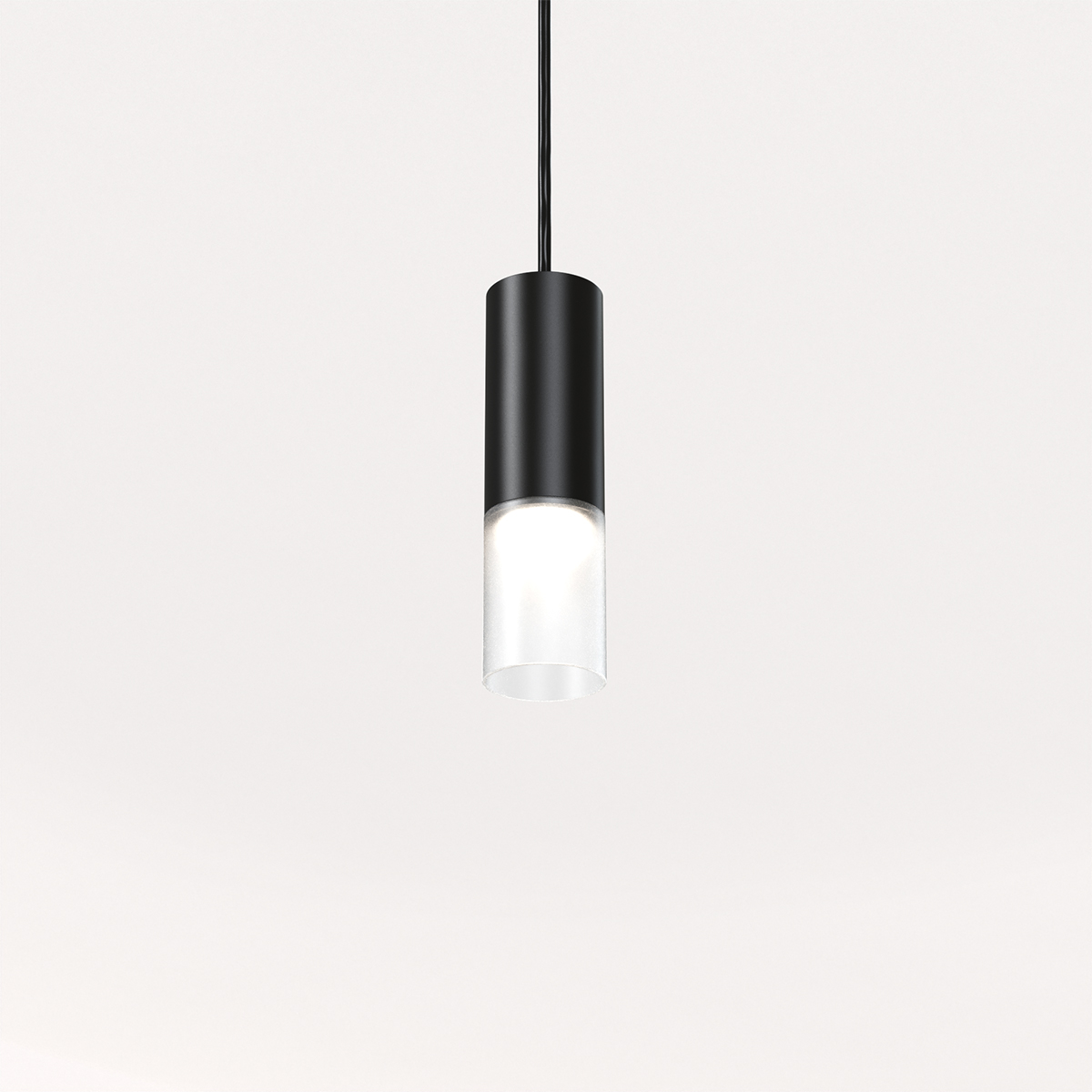

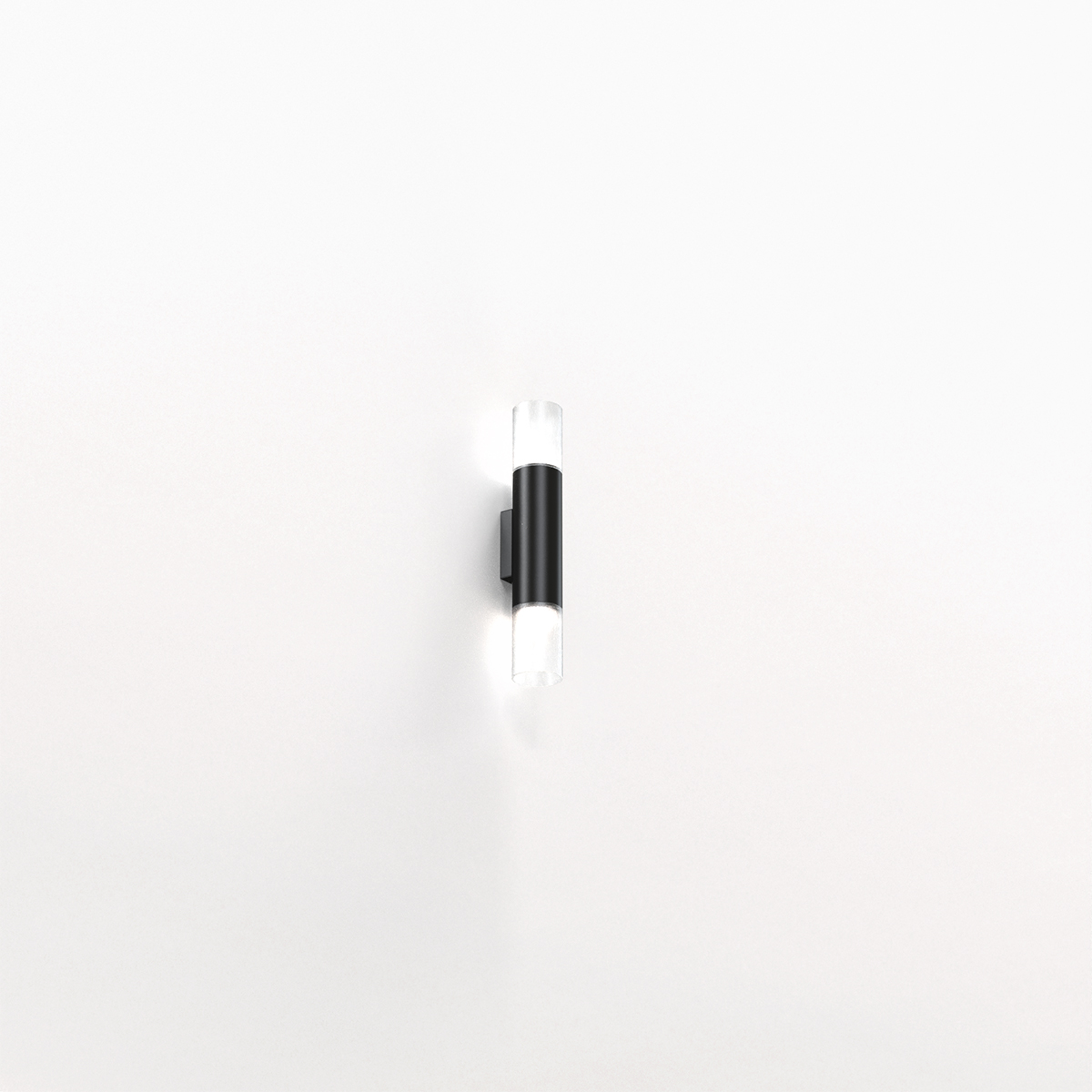

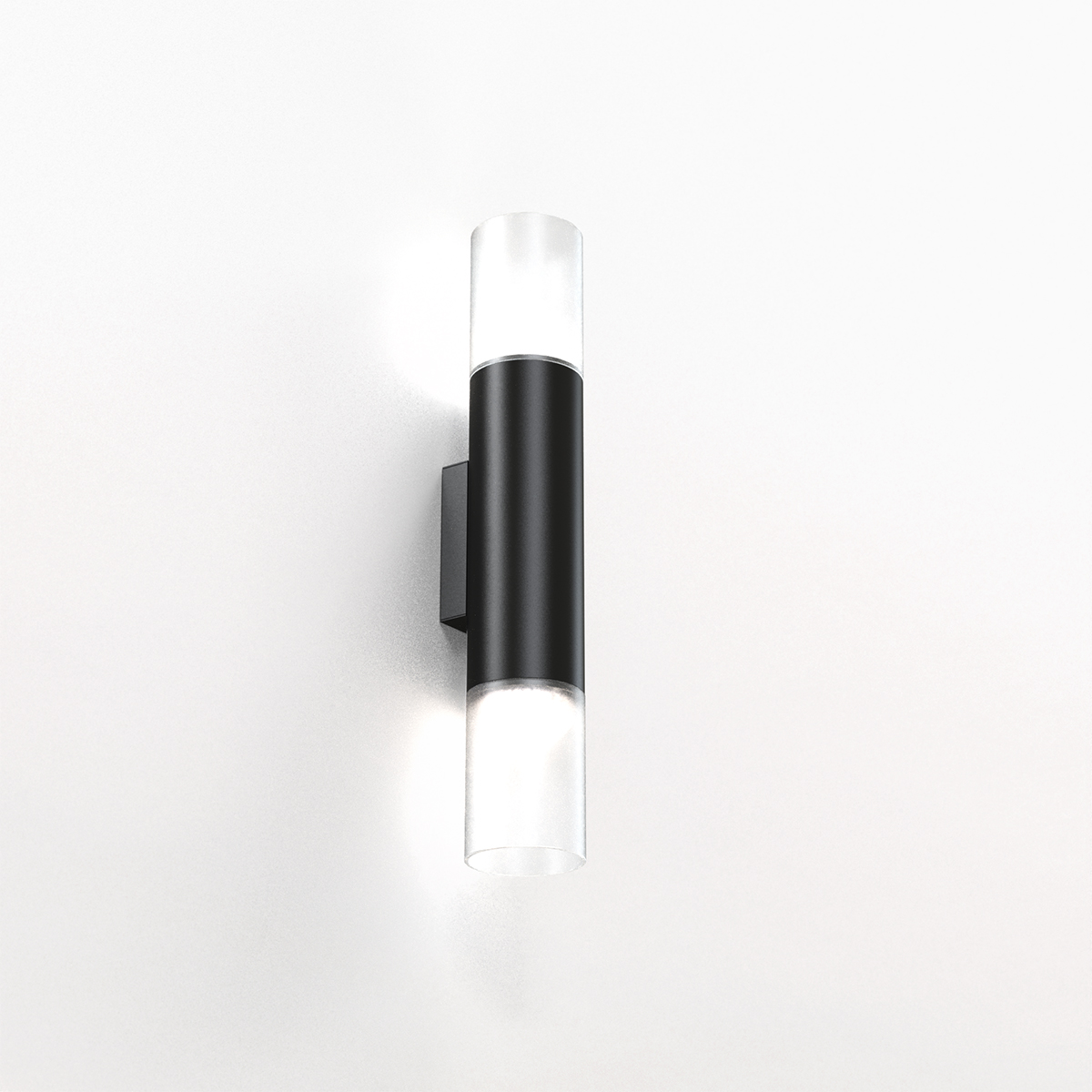

Aquila is a cylindrical fitting with strong form and excellent lighting performance. The construction is an extruded aluminium housing with a flush-fit sand blasted glass lens. For an even distribution across the glass, the led is controlled by a narrow beam LEDil optic. Aquila is fully customisable in size, and available in a full range of colour temperatures, finishes, power feed types and lumen outputs. IP20 rated.

  • Extruded aluminium housing & sandblasted glass lens
  • Three standard size options, non standards also available
  • Direct, indirect and direct/indirect distribution available
  • High efficiency
  • Four standard output options, non standards available on request
  • Integral control gear (mostly)
  • Dimming down to 0%
  • High quality of light thanks to <1% output ripple current
  • Sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
  • RAL + special powder coating, plates or acoustic finishes
  • Premium and standard LED options
  • Extras and add on: integral emergency, Casambi & Power over Ethernet (PoE)
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry
Contact

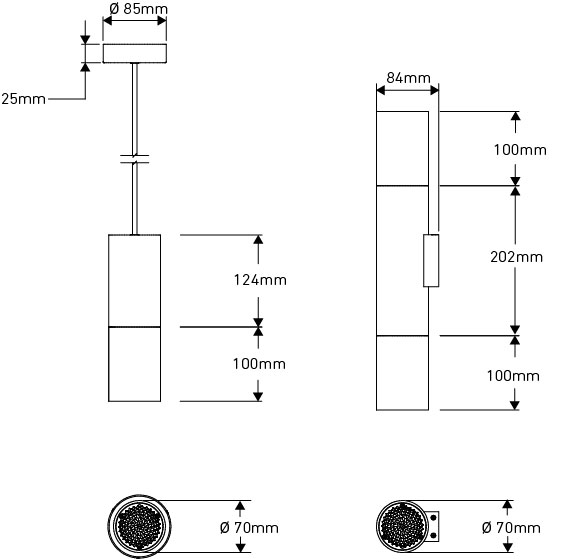

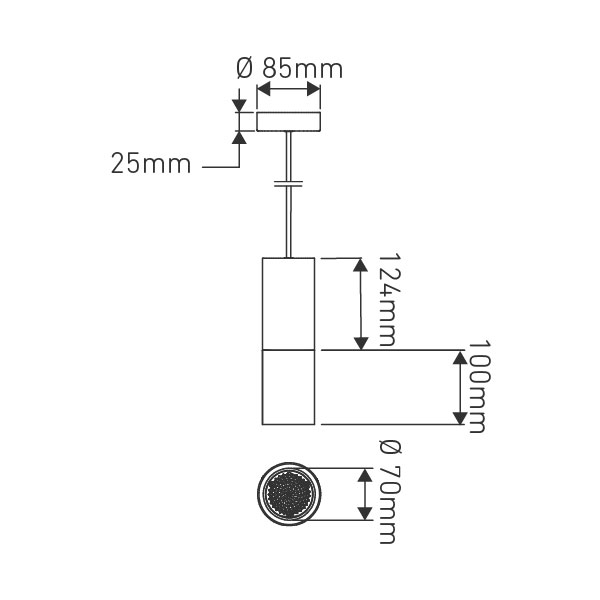

Dimensions

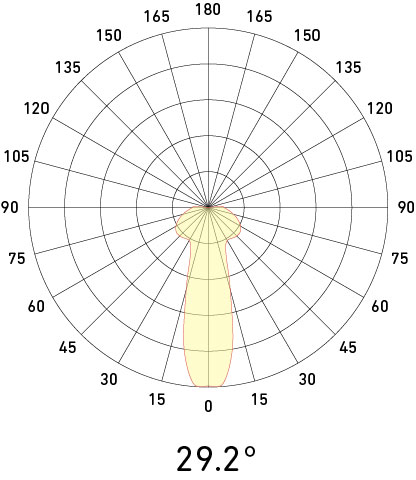

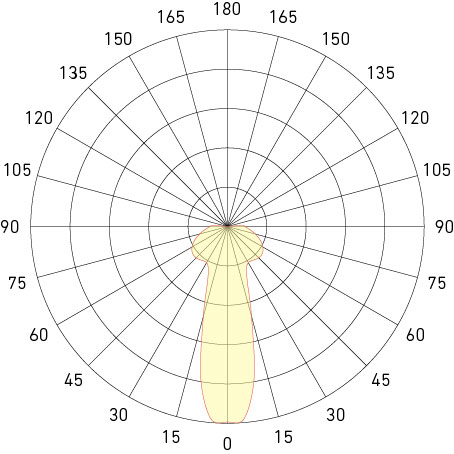

Distribution

Direct
Direct-Indirect

Downloads

LDT files DWG files
