Lyra

Configure this product in 3 easy steps

Product details

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

  • Super compact extruded aluminium housing
  • Full range of LEDil reflectors and optics available
  • High efficiency
  • Four standard output options, non standards available on request
  • Integral control gear
  • DALI, 0-10V, 1-10V, DMX & phase control available
  • Dimming down to 0%
  • High quality of light thanks to <1% output ripple current
  • Sensors available (including DALI/DSI Digital Dimming and daylight harvesting)
  • RAL + special powder coating, plates or acoustic finishes
  • Premium and standard LED options
  • Extras and add on: integral emergency, Casambi & Power over Ethernet (PoE).
Speak to us for product information or request a quote
Click to access our Contact Us page where you can send us an enquiry or request a quotation.
Make enquiry
Contact

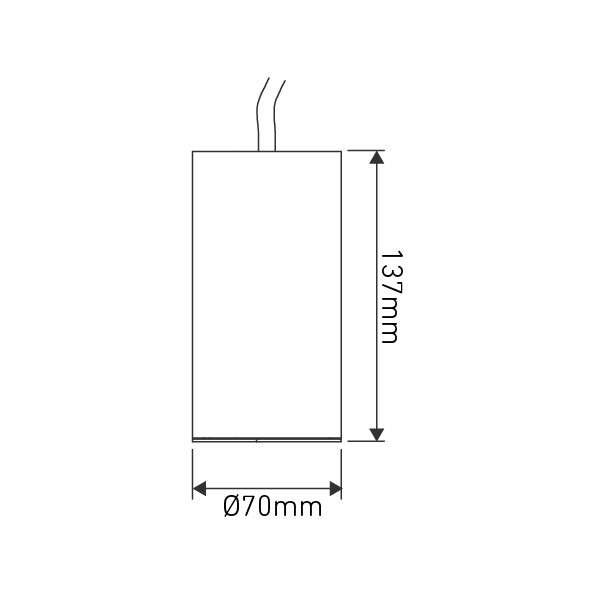

Dimensions

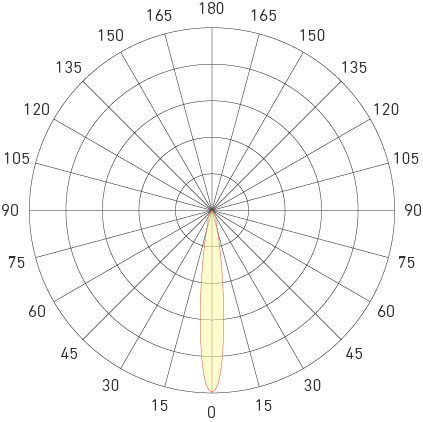

Distribution

12°
25°
40°
60°

Downloads

LDT files DWG files
